Rhaetian Railway shunting locomotive Tmf 2/2 85 to 90 kit.
Rhaetian Railway shunting locomotive Tmf 2/2 85 to 90 kit.
Produktbeschreibung
Between 1991 and 1994, RACO purchased six units with the numbers Tmf 2/2 85 to 90.
The machines reach a top speed of 50 km/h and develop an hourly output of 205 kW at 25 km/h. They weigh 24 t and are 7490 mm long.
The RhB Tmf 2/2 85-90 is a full metal kit. The kit is made entirely of brass and nickel silver parts and has a total weight of 33 grams when assembled. The space under the hood offers space for the installation of a very small DCC decoder. As a result, the windows in the cabin offer a clear view inside.
This kit contains the version of the orange Tmf 2/2 from before the conversion. The yellow version with all the changes from the 2022 conversion will also be available at a later date under the item number Nm-L00282.
The kit will be available from November 2024.
This kit includes:
• Nickel silver plate kit
• Circuit board with contact springs made of phosphor bronze, laser-cut plexiglass windows
• Nickel silver curved locomotive cabin
• Brass castings (bonnet, chassis and small parts)
• Chassis milled from brass
• 2x axles (wheel sets) with gears
• 12V DC motor with double worm gear

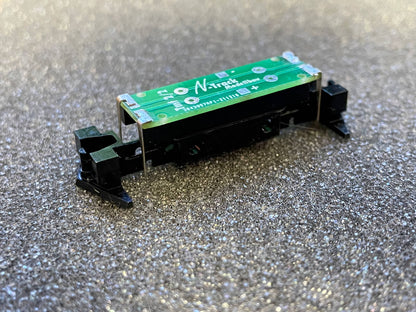

• Circuit board for power supply
• Wet decals with logo, text and lines
• MicroTrains couplings
• 9x steel screws M1.2
• 0.5 mm thick laser-cut acrylic glass for the windows
• 1x 0.3mm, 1x 0.5mm and 0.9mm HSS drill
• Comprehensive assembly instructions.
